DIY co2

More
21 Dec 2008 17:54 - 21 Dec 2008 18:01 #1 by duzzy1 (Martin Kennedy)
so after a few eeks puttin everything together .... i thought i'd stick up this thread to tell of my adventures

a few weeks ago i got my hands on a free 2 kilo co2 fire extinguisher and my brain went into overdrive .... how could i turn this into a co2 supply for my planted tank .....

so here we go ....


enter one fire extinguisher ........... remove the horn with an adjustable wrench and voila .... one 2 kilo bottle of co2



now next thing i needed was a regulator to control the flow of co2 into the tank .... cos i didn't fancy blowing 50 bar pressure into the thing for fear of the ends blowing out

so i had a look around ebay and found the regulator i needed ...



so attaching it onto the same thread that the horn came off .... it looked like this


i then connected the hosing to the outlet on the regulator



and secured it with the supplied tightening nut ...

then came the final stage of the operation ... how to difuse the co2 into the tank ... so again with the help of ebay searches i found a nice glass difuser with a built in check valve



this was positioned inside the tank ... about 5 inches below the surface .....

i then installed a check valve onto the hose from the fire extinguisher to prevent any chance of blow back into the regulator

so when i had the whole thing done ... i pulled out the safety pin from the fire extinguisher and pressed the handles together ( ensuring the output pressure on the reg was turned right down ) before taping them in an open position ..

the result is a nice steady supply of co2 in the tank .... and hopefully it being a 2 kilo bottle ... should last me approx a year or so

please beware though ... dealing with high pressure gas bottles is slightly dangerous so i will accept no responsability for any damage or harm that befalls anyone interested in trying this
Attachments:
Last edit: 21 Dec 2008 18:01 by duzzy1 (Martin Kennedy).

Please Log in to join the conversation.

More
21 Dec 2008 18:41 #2 by Johnmorrin (John Morrin)
Replied by Johnmorrin (John Morrin) on topic Re:DIY co2
Is it just me or do all the pictures just show the glass diffuser ?

Please Log in to join the conversation.

More
21 Dec 2008 19:07 #3 by Orca (Eoin Walsh)
Replied by Orca (Eoin Walsh) on topic Re:DIY co2
I see the same.Something might have gone wrong when posting pics.

Please Log in to join the conversation.

More
21 Dec 2008 19:18 #4 by duzzy1 (Martin Kennedy)
Replied by duzzy1 (Martin Kennedy) on topic Re:DIY co2
god damn it .... gotta try that again

Please Log in to join the conversation.

More
21 Dec 2008 19:26 #5 by duzzy1 (Martin Kennedy)
Replied by duzzy1 (Martin Kennedy) on topic Re:DIY co2
so after a few eeks puttin everything together .... i thought i'd stick up this thread to tell of my adventures

a few weeks ago i got my hands on a free 2 kilo co2 fire extinguisher and my brain went into overdrive .... how could i turn this into a co2 supply for my planted tank .....

so here we go ....


enter one fire extinguisher ........... remove the horn with an adjustable wrench and voila .... one 2 kilo bottle of co2





now next thing i needed was a regulator to control the flow of co2 into the tank .... cos i didn't fancy blowing 50 bar pressure into the thing for fear of the ends blowing out

so i had a look around ebay and found the regulator i needed ...

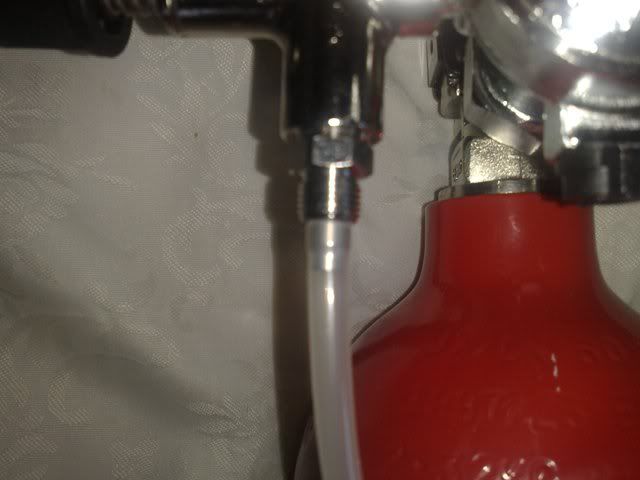

so attaching it onto the same thread that the horn came off .... it looked like this




i then connected the hosing to the outlet on the regulator


and secured it with the supplied tightening nut ...

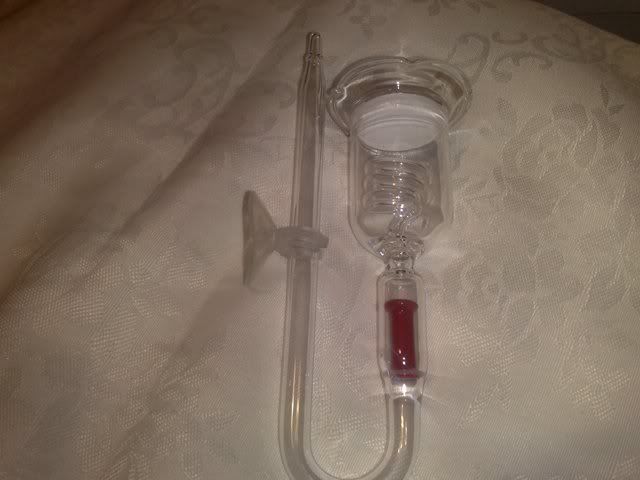

then came the final stage of the operation ... how to difuse the co2 into the tank ... so again with the help of ebay searches i found a nice glass difuser with a built in check valve



this was positioned inside the tank ... about 5 inches below the surface .....

i then installed a check valve onto the hose from the fire extinguisher to prevent any chance of blow back into the regulator

so when i had the whole thing done ... i pulled out the safety pin from the fire extinguisher and pressed the handles together ( ensuring the output pressure on the reg was turned right down ) before taping them in an open position ..

the result is a nice steady supply of co2 in the tank .... and hopefully it being a 2 kilo bottle ... should last me approx a year or so

please beware though ... dealing with high pressure gas bottles is slightly dangerous so i will accept no responsability for any damage or harm that befalls anyone interested in trying this

Please Log in to join the conversation.

More
21 Dec 2008 19:28 #6 by duzzy1 (Martin Kennedy)
Replied by duzzy1 (Martin Kennedy) on topic Re:DIY co2
wtf is goin on ..... just uploaded the pics to photobucket .... now they're apparently gone

hope yee get the idea guys cos i aint got the patience to try again tonight

Please Log in to join the conversation.

More
21 Dec 2008 22:02 #7 by platty252 (Darren Dalton)
Duzzy is the tubing you are using designed for Co2? Normal airline tubing will quickly degrade and break with the Co2

Please Log in to join the conversation.

More
21 Dec 2008 22:12 #8 by duzzy1 (Martin Kennedy)
Replied by duzzy1 (Martin Kennedy) on topic Re:DIY co2
i have co2 tubing on order at the moment

Please Log in to join the conversation.
