any tips on how to make my sump less niosey

More
13 Nov 2010 22:31 #1 by ciaranm (ciaran murray)
hi lads just got a betta tank 200L and sump under but it seems very niosy sounds like a drain running all the time is this normal .all sugestions welcome.cheers ciaran

Please Log in to join the conversation.

More
14 Nov 2010 00:52 #2 by JustinK (Justin Kelly)
Are you talking about a sucking noise ?
Apparently 1.5" pipe doesn't make this sound. I have this size pipe but theres a slight restriction on the connection, though doesnt make the noise like the ones with 3/4" and 1" size pipes.
some lads have tried using a valve on the pipe underneath to slow down the flow and not create the noise.
One guy removed the upstand pipe from the weir, which leaves a head of water in the weir to drain down to the sump (like the tank in your attic)

Please Log in to join the conversation.

More
14 Nov 2010 17:31 #3 by ciaranm (ciaran murray)
ye mate thats the same niose its doing my head in il try that just hope that pipe that size will fit on the connection if you know what i mean .thanks for your help again ciaran

Please Log in to join the conversation.

  • wolfsburg (wolfsburg)
  • wolfsburg (wolfsburg)'s Avatar
  • Visitor
  • Visitor
14 Nov 2010 17:43 #4 by wolfsburg (wolfsburg)
Replied by wolfsburg (wolfsburg) on topic Re:any tips on how to make my sump less niosey

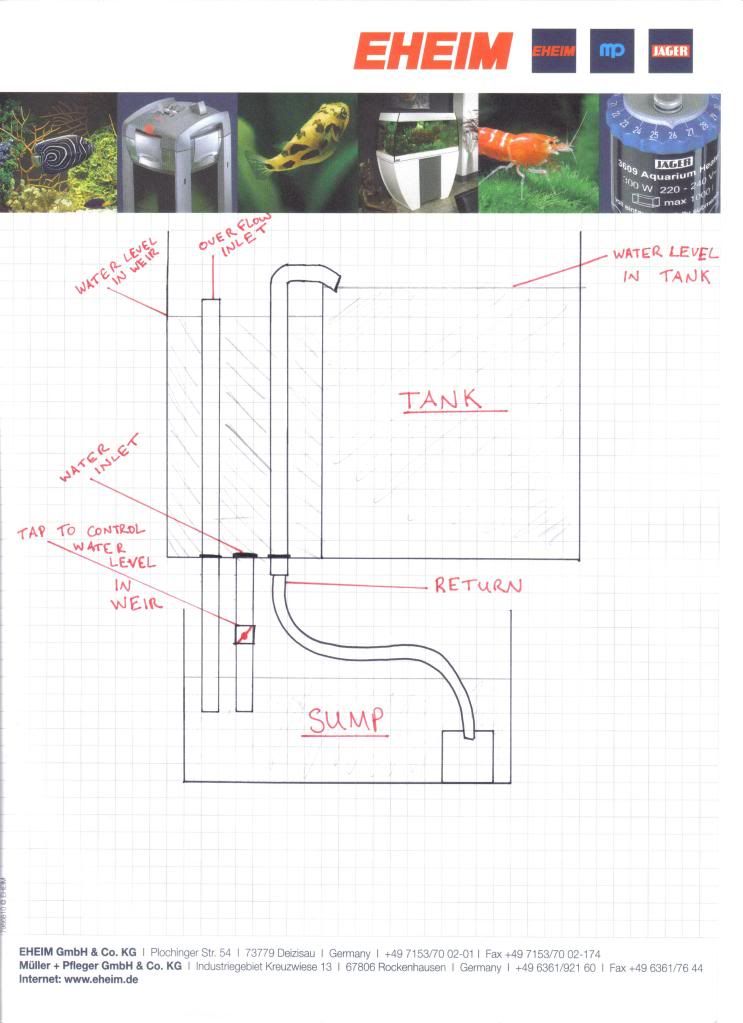

Here is a picture that I sketched for somebody a few weeks ago to show them them how to set up their pipework, I found this to be the quietest way...


Does that help at all?

Please Log in to join the conversation.

More
14 Nov 2010 17:44 #5 by joey (joe watson)
had the same problem with my big betta, there are 2 downpipes from the overflow to the sump, yeah?
one has a tap valve on? if so, this should be running from the bottom of the overflow, and the other pipe from the top of the overflow. you need to open this tap a little to let some water flow from the bottom (but still go down the top pipe too), at just the right speed so the thing drains properly with no noise. if its too open it'll sound like a waterfall down the empty overflow chamber

source: experience

on a side note: is the stand mdf?

Location: Portlaoise, Midlands

Please Log in to join the conversation.

More
14 Nov 2010 17:45 #6 by joey (joe watson)
ok that pic was posted at same time i was typing the last one, that is EXACLY what i was describing

Location: Portlaoise, Midlands

Please Log in to join the conversation.

  • wolfsburg (wolfsburg)
  • wolfsburg (wolfsburg)'s Avatar
  • Visitor
  • Visitor
14 Nov 2010 17:55 #7 by wolfsburg (wolfsburg)
Replied by wolfsburg (wolfsburg) on topic Re:any tips on how to make my sump less niosey
The pipe on the left of my picture should not be used constantly... the water-level in the weir should be a few centimetres under this pipe. It is there incase the "primary" pipe gets blocked and the tank water cannot drain into the sump.

The Key is to have the red tap adjusted just the right amount that it holds the water in the weir at that level.

This is how I have my tank at home and it is virtually silent, and I know my tank won't overflow while I'm out if a snail or somthing blocks the primary drain.

Please Log in to join the conversation.

More
14 Nov 2010 19:42 #8 by ciaranm (ciaran murray)
just tried all whats in the diagram but its much the same maybe a wider pipe what do you think.and cheers for that

Please Log in to join the conversation.

More
14 Nov 2010 19:51 #9 by ciaranm (ciaran murray)
just checking should the pipe in the weir be lower than the water level in the tank or would that make any diference .it looks shorter in the diagram and i have mine level with the tank water cheers mate

Please Log in to join the conversation.

  • wolfsburg (wolfsburg)
  • wolfsburg (wolfsburg)'s Avatar
  • Visitor
  • Visitor
14 Nov 2010 19:52 #10 by wolfsburg (wolfsburg)
Replied by wolfsburg (wolfsburg) on topic Re:any tips on how to make my sump less niosey
ciaranm wrote:

just tried all whats in the diagram but its much the same maybe a wider pipe what do you think.and cheers for that

Ihave come across it before that the intake pipe is blocked with snail shells or something similar which restricts the water flow, causing a really strange gurgling sound because air and water is trying to pass at the same time... like trying to empty a large plastic bottle of coke by turning it completely upside-down.
The pipes that come with the tank are perfectly suited to move the water quietly, so changing them would be pointless.
I think there must be something else missing here, it has to be an easy fix! :huh:

Please Log in to join the conversation.

  • wolfsburg (wolfsburg)
  • wolfsburg (wolfsburg)'s Avatar
  • Visitor
  • Visitor
14 Nov 2010 19:55 - 14 Nov 2010 19:58 #11 by wolfsburg (wolfsburg)
Replied by wolfsburg (wolfsburg) on topic Re:any tips on how to make my sump less niosey
my "over-flow" intake pipe is lower than the level of water in the main tank, but I dont think it's too important... once it is higher than the level of water in the weir...and LOWER THAN THE TOP OF THE TANK!!!

Remember the pipe on the far left doesn't actually have water running through it at all times, it is for emergencies if the "primary" one in the middle blocks.
Last edit: 14 Nov 2010 19:58 by wolfsburg (wolfsburg).

Please Log in to join the conversation.

More
14 Nov 2010 20:22 #12 by ciaranm (ciaran murray)
i got you now its sorted cant here a thing thanks for that mate diagram was great help cheers to all replies ciaran m

Please Log in to join the conversation.

More
14 Nov 2010 20:37 #13 by JustinK (Justin Kelly)
Thats the one I was talking about.
The outlet from the bottom of the weir has a head of water over it so doesn't make the noise.
The valve helps to set the flow rate to maintain the head of water in the weir.
The other outlet is back-up in case of blockage of the first pipe.

There is also a Durso pipe setup ( you can google it)
basically a tee and elbow on the top of the outlet
This site is where they say an 1 1/2" pipe doesnt make any noise.

Just make sure your sump can take the volume of water from the weir plus the difference in water level from the main tank which would also fall into the weir if pump/power failure.

As an experiment I would suggest using an 1 1/2" pipe which then reduces to existing pipe size to see if it can hold sufficient water to prevent noise.

Please Log in to join the conversation.

  • wolfsburg (wolfsburg)
  • wolfsburg (wolfsburg)'s Avatar
  • Visitor
  • Visitor
14 Nov 2010 20:48 - 14 Nov 2010 20:50 #14 by wolfsburg (wolfsburg)
Replied by wolfsburg (wolfsburg) on topic Re:any tips on how to make my sump less niosey
JustinK wrote:


Just make sure your sump can take the volume of water from the weir plus the difference in water level from the main tank which would also fall into the weir if pump/power failure.

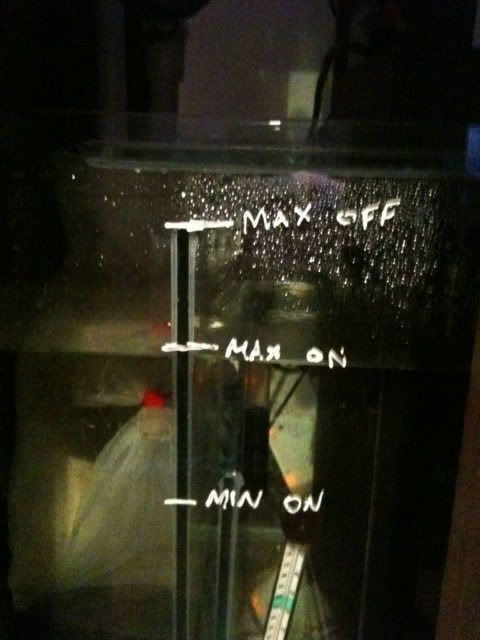

This helps...


If the water level is at "max on" and I switch off the return pump it won't go past the "max off" mark. The "min on" mark is an indicator so I don't let the pump run dry from evaporation etc.

... No problem mate, I'm happy to help!
Last edit: 14 Nov 2010 20:50 by wolfsburg (wolfsburg).

Please Log in to join the conversation.
